Bait Tube to PenLight Flashlight Holder

Description

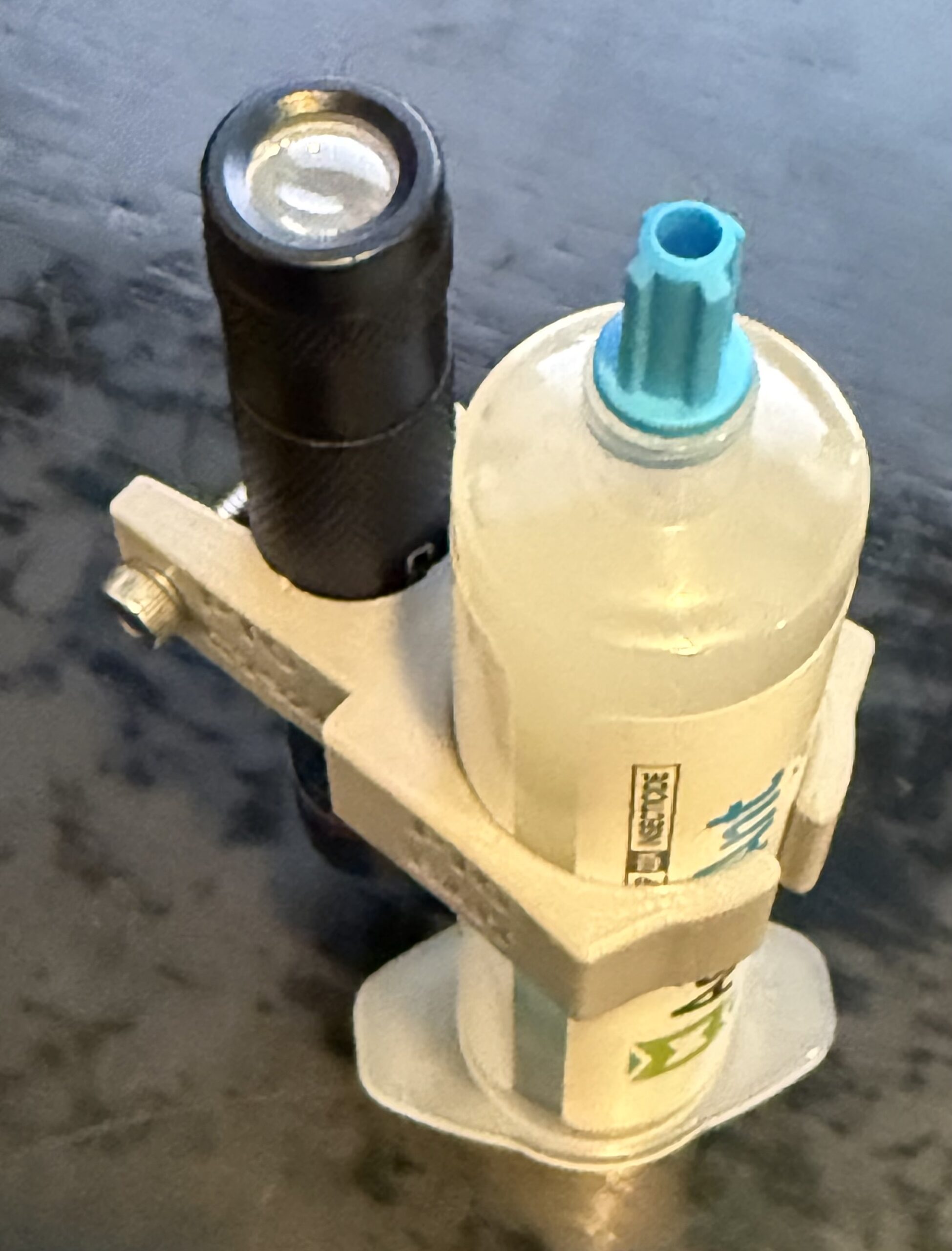

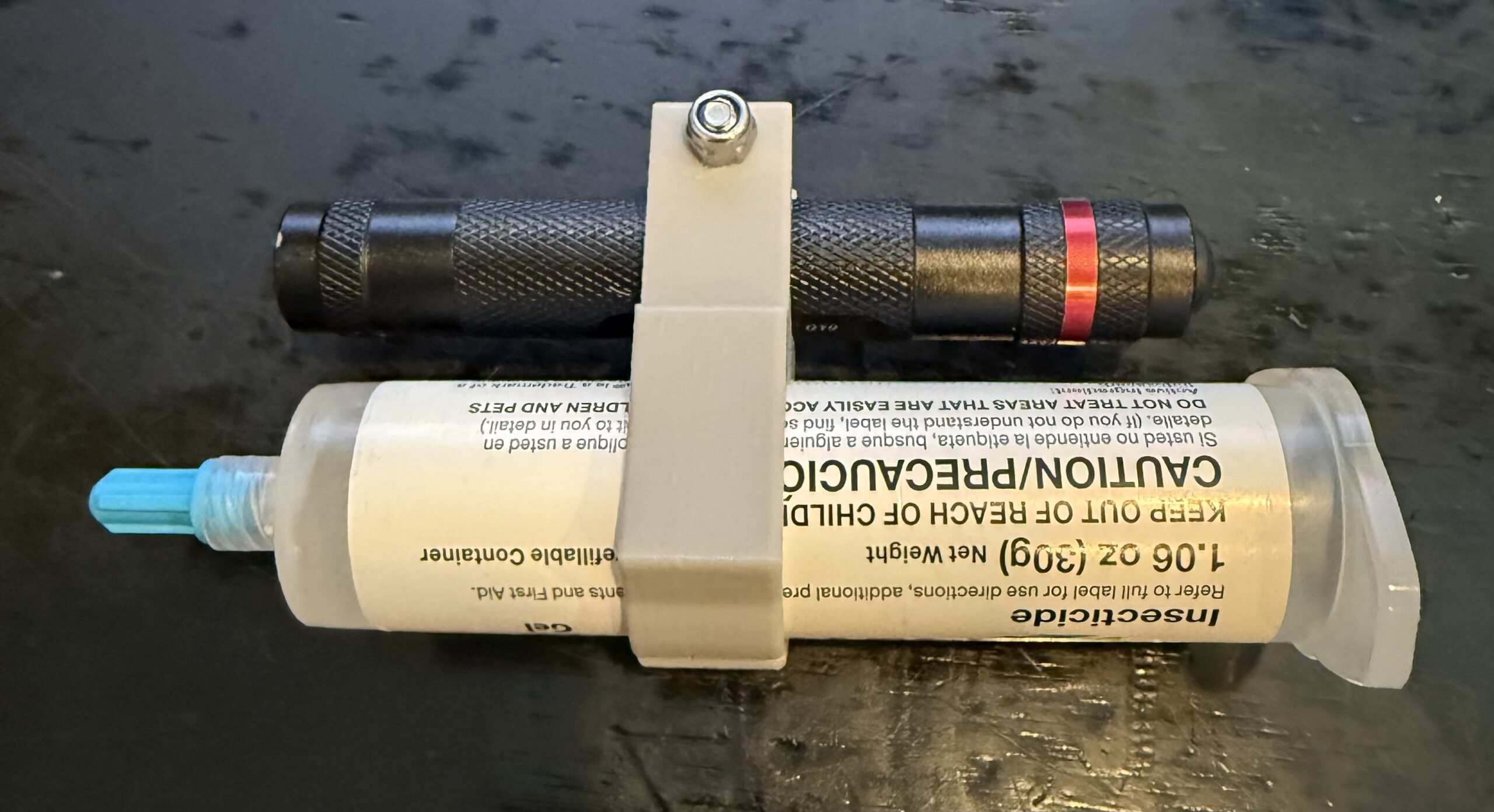

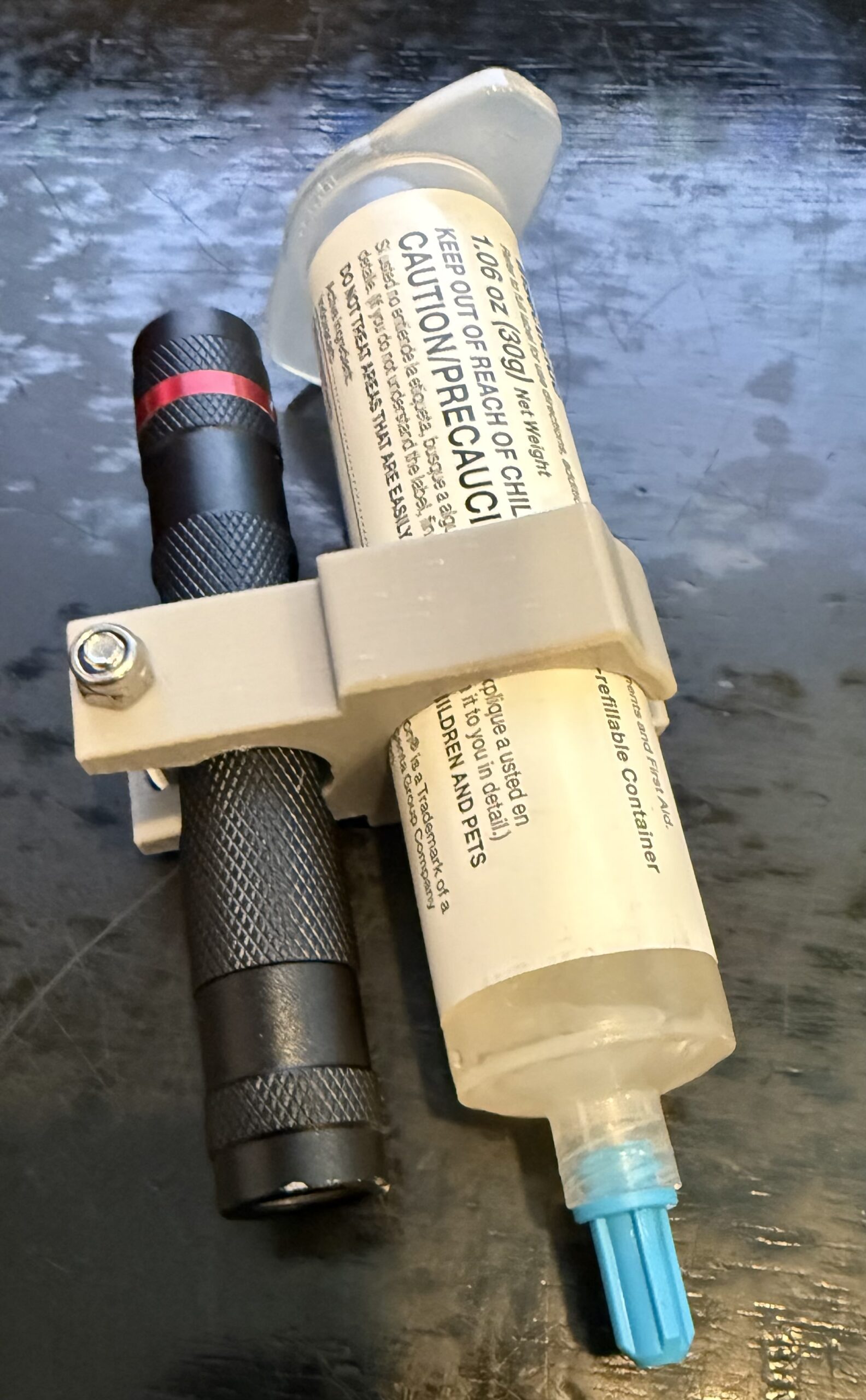

Penlight Flashlight holder for mounting on common bait tubes. Works with bait guns as long as there is sufficient clearance.  Designed for Bait Tubes with a 25mm or approximately 1 inch diameter.  Designed for a Coast G19 or G20 penlight, but compatible with penlights that are 15.8mm or 5/8″ in diameter.  When used with a Coast G19 the flashlight, AAA battery, Mount and hardware weigh approximately 1.5 oz.  Designed to be installed on the bait tube to put light where you need it while doing crack, crevice and void bait applications.  Made from a durable, UV and Heat resistant plastic.

Recommended Flashlights available at Home Depot, Amazon and other places.
Coast G19 – Amazon – 54 lumens – 2.5 hr run time – 1x AAA battery
Coast G20 – Amazon – 54 lumens – 10.5 hr run time – 2x AAA battery or rechargeable OEM battery (sold separately)
OLight i3T EOS 180 – Amazon – 180 lumens – up to 16 hrs – 1x AAA battery

Similar Products:

• Wand mount for G19/G20 – lets you mount the flashlight to the wand on your Flowzone or B&G wand.
• Wand Valve Mount for G19/G20 – lets you mount the flashlight to a common bait tube.

Note: No flashlight, pesticide, bait or other items are included.  Only the 3D printed flashlight mount and included hardware are being sold.

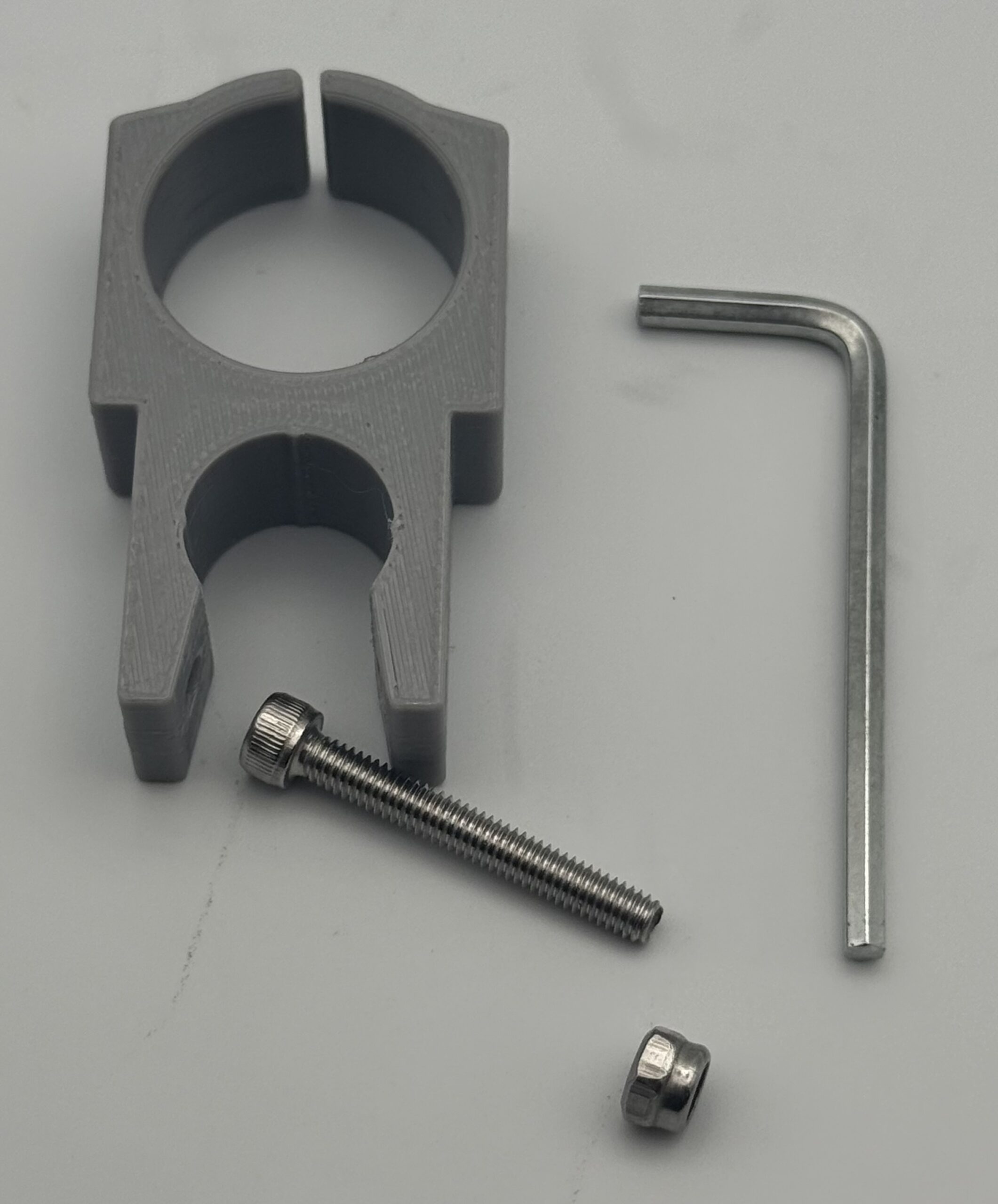

Included Hardware:

• 1 M4×25 stainless steel cap screw

• 1 pc M4 nylon locknut

• 3 mm Allen wrench

Installation

1. Make sure all components are at room temperature.  Installing the holder while it is cold may cause the plastic to be brittle resulting in damage.

3. Install the flashlight into the holder using firm even pressure.  Position the flashlight where you would like it.

4. Install the screw and tighten the nut until it’s snug.  Light pressure is enough to hold the light still.

5. Slide the holder onto the bait tube and position it where you would like it.  It has enough pressure to stay still.

6. To change the battery simply unscrew the cap with the light installed.

Material & Manufacturing

Designed and manufactured in the USA using high-quality, UV and temperature resistant plastic.

Shipping:
Ships in protective packaging with tracking using the carrier of your choice. Flat-rate shipping applies regardless of quantity ordered.

This is an independent, aftermarket accessory and is not affiliated with or endorsed by any trademark holder.
